Product Description
Name |
26mm Small Cabinet Hinges |
Opening Angle |
93 degree |
Hinge Cup Thicknes |
10mm |
Hinge Cup Diameter |
26mm |
Suitable Board Thickness |
12-18mm |
Material |
Cold rolled steel |
Finish |
Nickel plated |
Net Weight |
68g |
Application |
Cabinet,cupboard,wardrobe, closet |
The Coverage Adjustment |
0/+4mm |

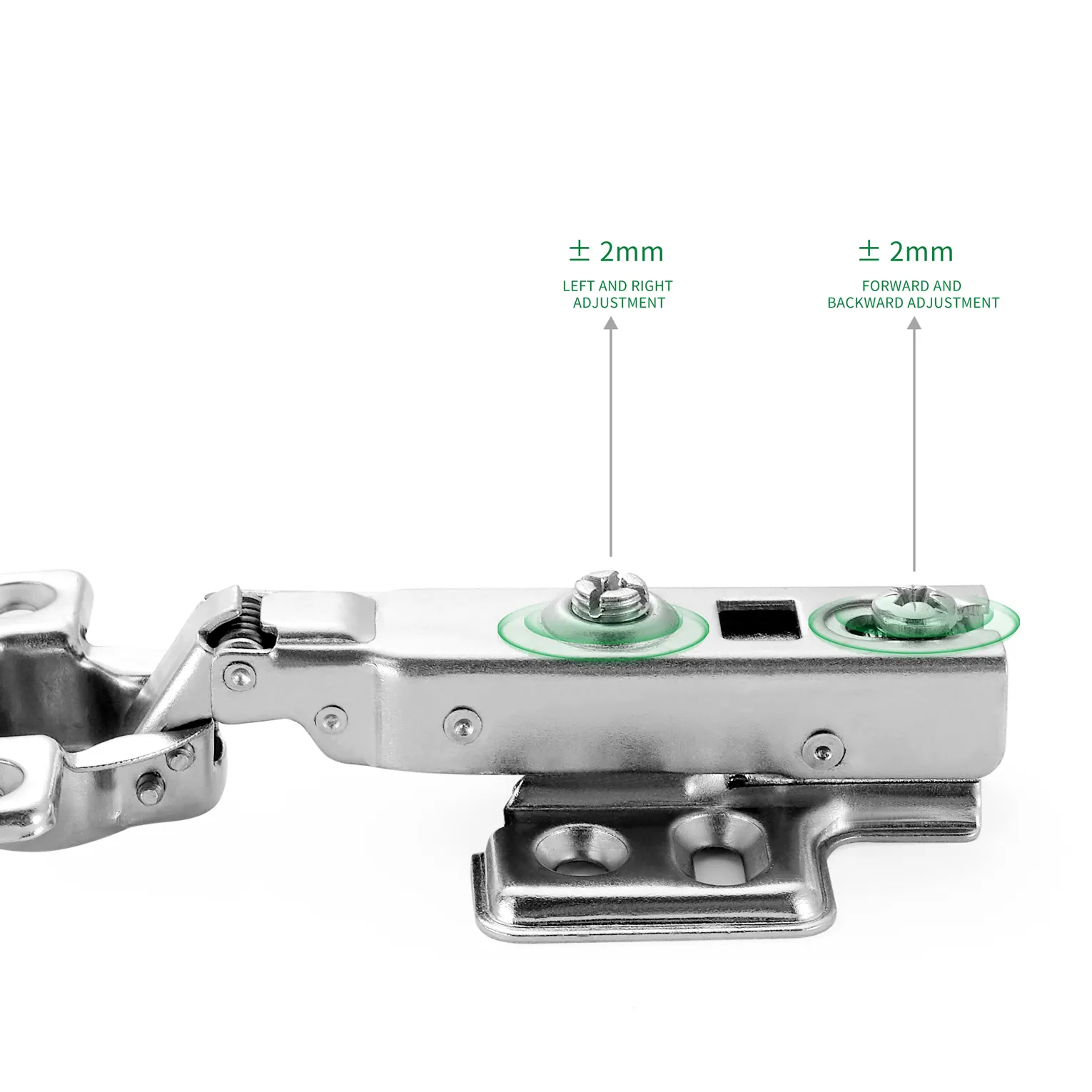

The Depth Adjustment |
-2/+2mm |
The Base adjustment |
-2/+2mm |
Height of mounting plate |
H=0 |
Package |
100 pcs/carton |
Door Drilling Size |
3-7mm |
Product Description
TALLSEN 26MM CUP HYDRAULIC INSEPERABLE HINGE, is carefully designed by the designer. The product is made of cold-rolled steel and nickel-plated surface treatment, which has good anti-rust performance. The material is thickened, the structure is stable, the load-bearing capacity is strong, and it is not easy to break after repeated opening and closing.

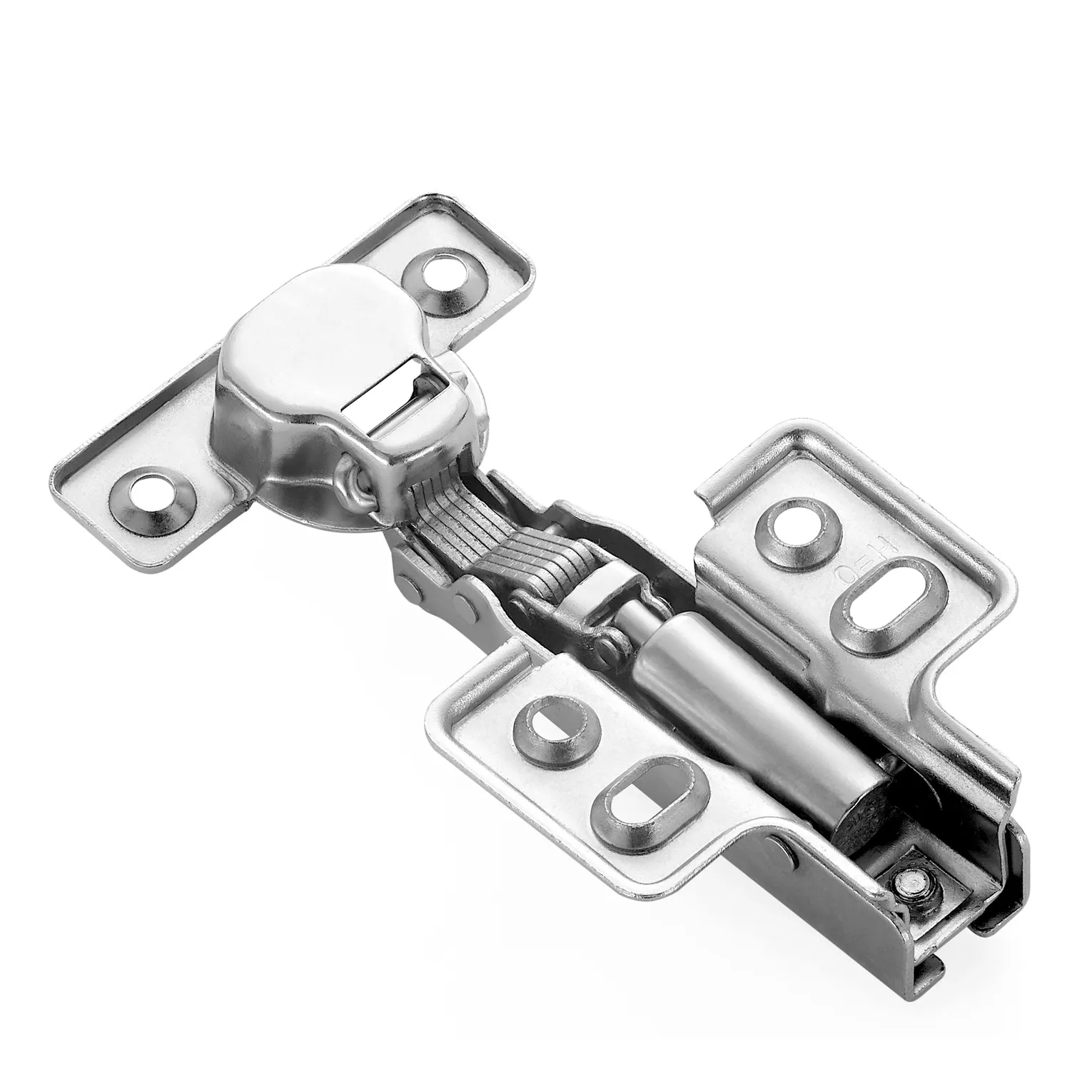

TALLSEN 26MM CUP HYDRAULIC INSEPERABLE HINGE with 26MM cup head aperture, suitable for thinner door panels. The product adopts scientific base positioning, and the fixed hinge is not easy to shift. Hydraulic damping, smooth and quiet opening and closing, quiet and comfortable use.
TALLSEN 26MM CUP HYDRAULIC INSEPERABLE HINGE has passed 80,000 load-bearing tests and a 48-hour high-intensity salt spray test. In line with international standards, passed the ISO9001 quality management system certification, passed the Swiss SGS quality test and obtained CE certification, the product quality is guaranteed.
Installation Diagram
Product Details
Product Advantages
● Selected materials, strong rust resistance
● Thick material, stable structure
● Hydraulic buffer, silent opening and closing
● Stable structure, not easy to break
Company Advantages
· The POS interface of Tallsen semi concealed cabinet hinges is designed by our professional experts who facilitate the overall aesthetic of the interface.
· The product has a short circuit protection system. This system helps guard against insulation failure in the electrical equipment and prevents mechanical damage.
· The product can easily work with people's skin instead of against it, causing no redness, irritation, and breakouts.
Company Features
· Tallsen Hardware enjoy its reputation as a professional semi concealed cabinet hinges supplier.
· Our factory is located in a favorable geographic position. This strategic location helps us to connect businesses competently along with quality products that meet customers’ requirements.
· Our company demonstrates responsibility and sustainability. We strive to track energy and water consumption at our production sites and make improvements. Ask!
Application of the Product
Our semi concealed cabinet hinges can be used in a variety of industries to play a certain role.
Since the establishment, Tallsen has always been focusing on the R&D and production of With great production capability, we can provide customers with personalized solutions according to their needs.
