Product details of the frameless cabinet hinges
Quick Overview
International production standard: The production of frameless cabinet hinges is carried out in conformity with the internationally-recognized production standards. Tests and analyzed data show that the performance of this product can meet the needs of customers. The frameless cabinet hinges produced by our company is widely used in various industries and fields. The product has great competitive strengths in the market all over China.
Product Introduction
The main differences between Tallsen's frameless cabinet hinges and similar products are as follows.
Cold Rolled Steel Clip On Hydraulic Hinge
Clip-on 3d adjustalbe hydraulicdampimg hinge(one-way)

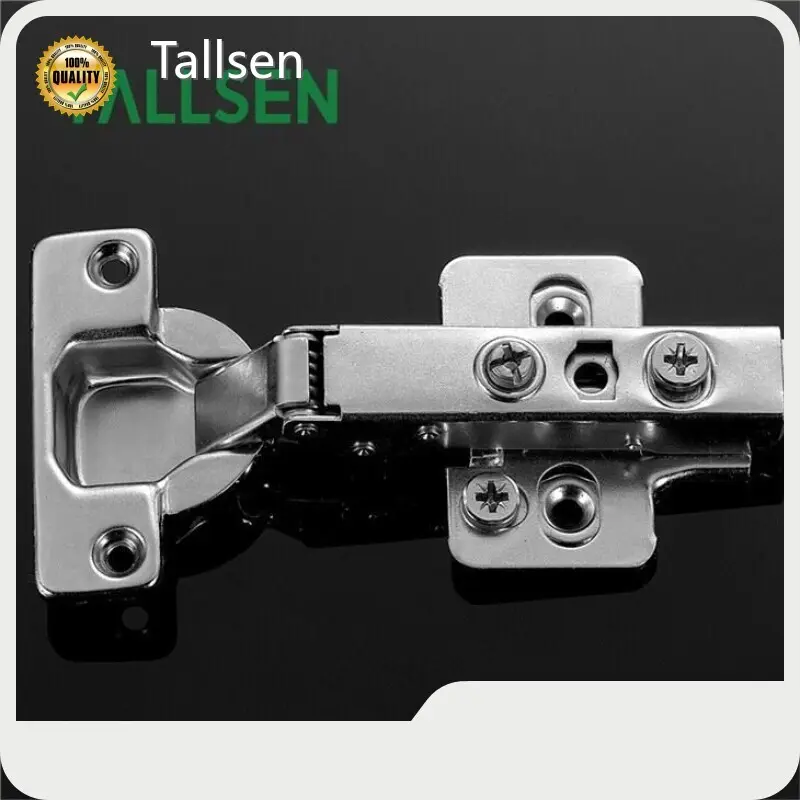

Name | TH3309 Cold Rolled Steel Clip On Hydraulic Hinge |
Type | Clip-on One Way |
Opening angle | 100° |
Diameter of hinge cup | 35mm |
Material | Stainless Steel, Nickel Plated |
Hydraulic Soft closing | yes |
The depth adjustment | -2mm/ +2mm |
Base adjustment (up/down) | -2mm/ +2mm |
Door coverage adjustment | 0mm/ +6mm |
Suitable Board Thickness | 15-20mm |
Depth of Hinge Cup | 11.3mm |
Hinge Cup Screw Hole Distance | 48mm |
Door Drilling Size | 3-7mm |
Height of mounting plate | H=0 |
Package | 2pc/polybag 200 pcs/carton |
PRODUCT DETAILS

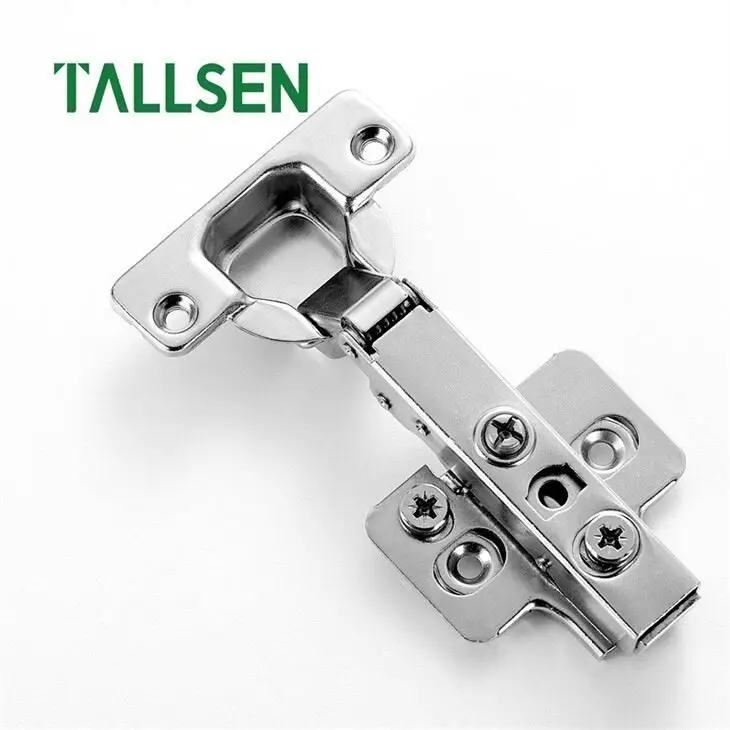

TH3309 Cold Rolled Steel Clip On Hydraulic Hinge | |
Avoid multiple disassembly and damage to the cabinet door. | |
Quick and easy install, ideal for doors requiring multiple hinges to be fitted and make the job much easier. |
INSTALLATION DIAGRAM
Tallsen is a home hardware enterprise integrating R&D, production and sales. Tallsen has a 13,000㎡modern industrial area, a 200㎡marketing center, a 200㎡product testing center, a 500㎡ experience exhibition hall, a 1,000 ㎡logistics center. Tallsen is always committed to creating the industry's superior quality household hardware products.
FAQ:
① Our product has passed the 48-hours cycle test, hinge cycle (opening and closing) reach to 50,000 times under normal use conditions.
② Three types of overlay are available: Full overlay, Half-overlay, Insert.
③ Opening Angle: 110 Degree.
④ Diameter of hinge cup: 35mm, Depth of hinge cup: 12mm.
⑤ 3-Cam Adjustment: Vertical(-2mm/+2mm), Horizontal(0-5mm) and Depth(-2mm/+2mm) adjustment. These screws can be fine tuned after installation, which ensure the door panel and cabinet fit together perfectly.
⑥ Hinge screws hole distance: 48mm, mounting plate screws hole distance: 32mm.
⑦ Suitable door thickness: 14-20mm.
⑧ Packing Specification: 2/4/10/20pcs per box are available, you can select the appropriate quantity according to needs.
⑨ Package include: Hinges, Four-hole mounting plate, mounting screws and installation diagram.
Company Information
Established years ago, Tallsen Hardware has created a niche in the market with a distinctive product portfolio such as frameless cabinet hinges. We have established a high-efficient manufacturing team. They are equipped with considerable experience in producing quality products, utilizing lean manufacturing principles to meet the highest production standards. We value social sustainability. We put efforts to understand the impact of our events on the communities, and then work to amplify good influences and avoid bad influences.
We value honesty greatly and always keep the promise. And our products are complete in kinds and reliable in quality. If you have any needs, feel free to contact us at any time.
