Free Training Service and the Rest Payment Before Shipment.) Heavy Duty Cabinet Hinges Tallsen
Product details of the heavy duty cabinet hinges
Product Introduction
Tallsen heavy duty cabinet hinges adopts advanced and safet raw material. The rigorous quality checking process guarantees customers a full range of quality product. Supplying quality heavy duty cabinet hinges and considerate service with consumers has always been Tallsen profession.
Product Description
|
Name |
TH3309 Full Overlay Lazy Susan Hinges |
|
Type |
Clip-on One Way |
|
Opening angle |
100° |
|
Diameter of hinge cup |
35mm |
|
Material |
Stainless Steel, Nickel Plated |
|
Hydraulic Soft closing |
yes |
|
The depth adjustment |
-2mm/ +2mm |
|
Base adjustment (up/down) |
-2mm/ +2mm |
|
Door coverage adjustment |
0mm/ +6mm |
|
Suitable Board Thickness |
15-20mm |
|
Depth of Hinge Cup |
11.3mm |
|
Hinge Cup Screw Hole Distance |
48mm |
|
Door Drilling Size |
3-7mm |
|
Height of mounting plate |
H=0 |
|
Package |
2pc/polybag 200 pcs/carton |
Product Description

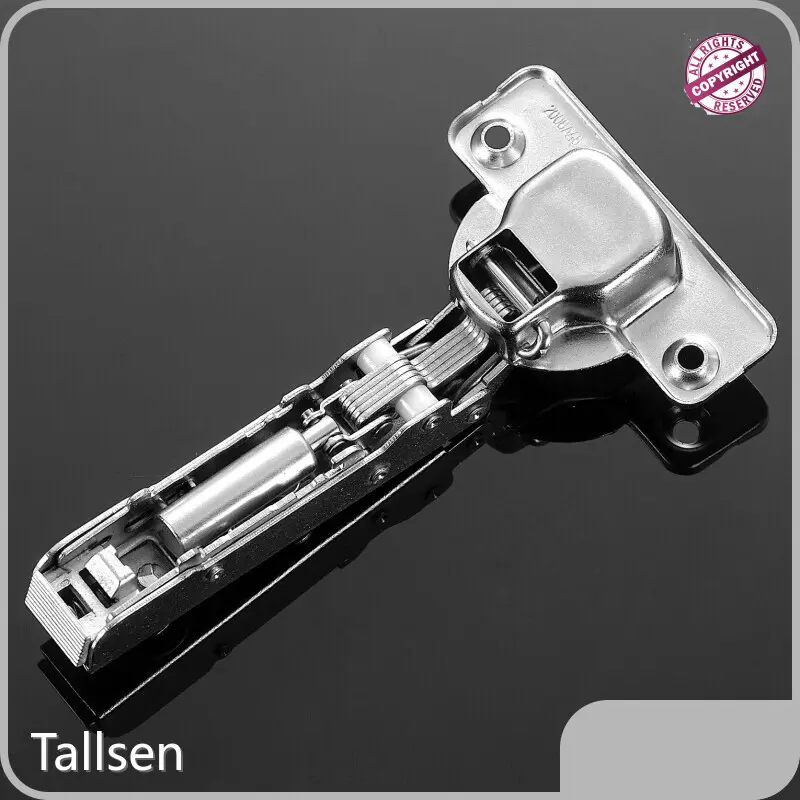

TALLSEN TH3309 CLIP-ON 3D HYDRAULIC FURNITURE HINGE selects Shanghai Baosteel cold-rolled steel as high-quality raw material.
The surface of the cabinet hinge is 3MM plated, 1.5mm copper-plated, 1.5mm nickel-plated, which provides a good protective barrier for moisture resistance.
At the same time, the nickel color can be perfectly matched with furniture of different colors.
Each batch of cabinet hinges passed the 48-hour neutral salt spray test and level 8, anti-corrosion and anti-rust.
And passed 50,000 opening and closing tests, with a service life of up to 20 years.
Suitable for door panels with a thickness of 14-21mm, wider application scenarios ex. Wardrobe, Kitchen cabinet,Bathroom cabinet etc.
Installation Diagram
Product Details
Full Overlap Design
TH3309 Full Overlay Lazy Susan Hinges have a straight arm and allow the edge of your cabinet door to completely match the edge of your closet. Depth, wind age and height adjustments are made with these three screws. They can be adjusted so that the door frame is completely hidden and fits perfectly.
Soft Close
The soft close function is one of the best indicators of the hinge quality. The soft close function prevents annoying kitchen noises and extends the service life of doors, cupboards and hinges.
Clip On Function
The clip-on hinge is the easiest and fastest to assemble without tools. It's ideal for doors that require multiple hinges to be installed because you simply align the hinge with the mounting plate and push it in motion, then it will snap into place and connect to your mounting plate. They require very little alignment and make the job a lot easier when you need to assemble some hinges.TH3309 Full Overlay Lazy Susan Hinges have a straight arm and allow the edge of your cabinet door to completely match the edge of your closet. Depth, wind age and height adjustments are made with these three screws. They can be adjusted so that the door frame is completely hidden and fits perfectly.
Product Features
● 3D wing plate, flexibly adjust door 6 directions
● Clip-on wing base, Quick disassembly, save installation time.
● Surface 3MM double layer plating, anti-corrosion and anti-rust,
● Built-in buffer device, gently close the cabinet door
● 48 hours neutral salt spray test level 8
● 50000 opening and closing tests
● 20 years service life
Company Feature
• Time passed quickly. Tallsen has passed a difficult and hard time of years unconsciously. Over the years, we keep pursuing our dreams and constantly realizing self breakthrough.
• At present, our company has a wide range of multiple business outlets in China. We have strong strength and advantages in the market.
• Tallsen enjoys a good geographic location. There are different major traffic lines crossing the city. The transportation of is strongly guaranteed by the unimpeded traffic.
• Tallsen adheres to the service concept to be sincere, devoted, considerate and reliable. We are dedicated to providing customers with comprehensive and quality services to meet the different needs of customers. We look forward to building win-win partnerships.
Tallsen provides customization for quality Please contact us for details.
