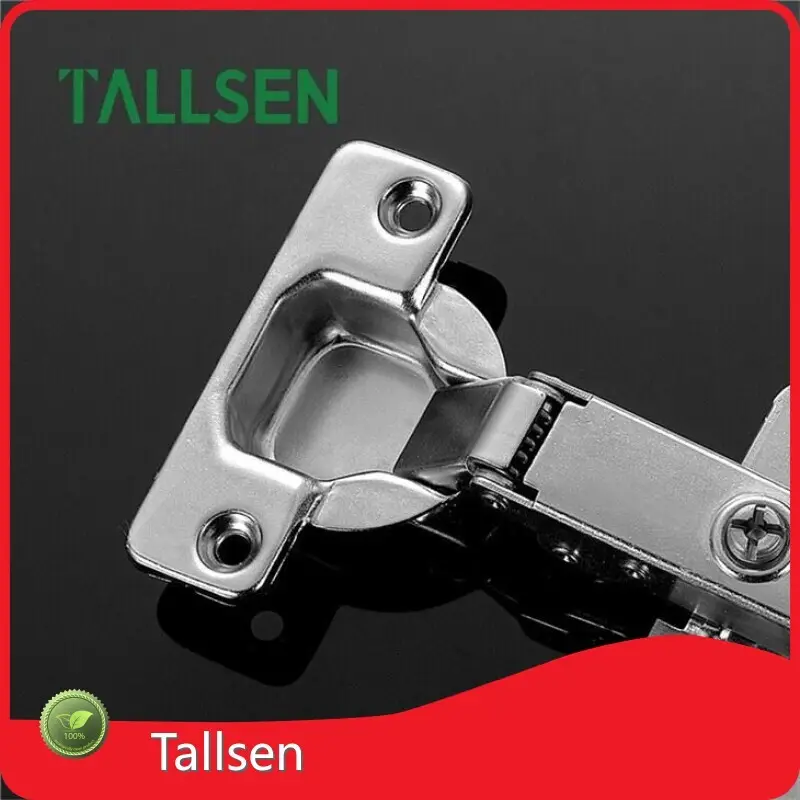

Product details of the semi concealed cabinet hinges


Product Information

Tallsen semi concealed cabinet hinges is manufactured by highly qualified and experienced staff using the advanced production technology. With the world’s advanced automatic production line and computer detection equipment, the quality of this product is guaranteed. With friendly customer service, the fame of Tallsen has been spreading in semi concealed cabinet hinges industry.

3D Adjustable Clip On Concealed Kitchen Cabinet Door Hinges

Semi Concealed Cabinet Hinges Tallsen 6

Clip-on 3d adjustalbe hydraulicdampimg hinge(one-way)

Semi Concealed Cabinet Hinges Tallsen 7

Semi Concealed Cabinet Hinges Tallsen 8

Name

3D Adjustable Clip On Concealed Kitchen Cabinet Door Hinges

Type

Clip-on One Way

Opening angle

100°

Diameter of hinge cup35mm

Material

Stainless Steel, Nickel Plated

Hydraulic Soft closing

yes

The depth adjustment

-2mm/ +2mm

Base adjustment (up/down)

-2mm/ +2mm

Door coverage adjustment0mm/ +6mm
Suitable Board Thickness15-20mm
Depth of Hinge Cup11.3mm
Hinge Cup Screw Hole Distance48mm
Door Drilling Size3-7mm
Height of mounting plateH=0
Package2pc/polybag 200 pcs/carton

Semi Concealed Cabinet Hinges Tallsen 9

Semi Concealed Cabinet Hinges Tallsen 10

      PRODUCT DETAILS

TH3309 3D Adjustable Clip On Concealed Kitchen Cabinet Door Hinges

Semi Concealed Cabinet Hinges Tallsen 11
Semi Concealed Cabinet Hinges Tallsen 12

Full, Opening Angle: 110 Degree, Closing Type: Soft Closing, Adjustment: 3-Cam Vertical, Horizontal and Depth adjustment.

These are the main specifications of our hinges, please look at the descriptions section at the bottom for a comprehensive view of all specifications.



Semi Concealed Cabinet Hinges Tallsen 13

Semi Concealed Cabinet Hinges Tallsen 14



                                                                                      INSTALLATION DIAGRAM

Semi Concealed Cabinet Hinges Tallsen 15

Semi Concealed Cabinet Hinges Tallsen 16

Designed for frameless cabinet doors, these small hinges help save space in otherwise tight cabinets to improve kitchen convenience. A full overlay is a cabinet door that conceals the opening to the storage area. This type of door leaves very little gaps between the adjacent openings so that only a small portion of the cabinet box is visible between units. A full overlay fully rests on the cabinet opening when it is closed. A full overlay does not interfere with the interior space of the cabinet.

Semi Concealed Cabinet Hinges Tallsen 17

Semi Concealed Cabinet Hinges Tallsen 18

Semi Concealed Cabinet Hinges Tallsen 19

Semi Concealed Cabinet Hinges Tallsen 20

Semi Concealed Cabinet Hinges Tallsen 21

Semi Concealed Cabinet Hinges Tallsen 22

FAQ:

Q1: What is the main specification of your hinge?

A:Full overlap and opening angle110 degrees.

Q2: What is the closing type of your hinge?

A: Hydraulic soft close.

Q3: What direction can I ajust the hinge ?

A:  Vertical, horizontal and depth adjustment.

Q4: What is minimum quantity of normal order?

A: At least 10,000 pcs


Company Advantage

• Tallsen's development is guaranteed by the good external conditions, including superior geographical location, traffic convenience, and abundant resources.
• Our company wholeheartedly provides customers with sincere and reasonable services.
• Since the establishment in Tallsen has been dedicated to the production of for years. Now we have leading production technology in the industry.
Tallsen has promotion within a limit time. We provide more discounts for larger-quantity orders!

Contact Us
We welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
