Product details of the soft close cabinet hinges
Product Introduction
Tallsen soft close cabinet hinges is produced in fast and accurate flexibility of production methods. The quality of the product has withstood the test of time. This product is bound to help both make money and increase brand reputation.

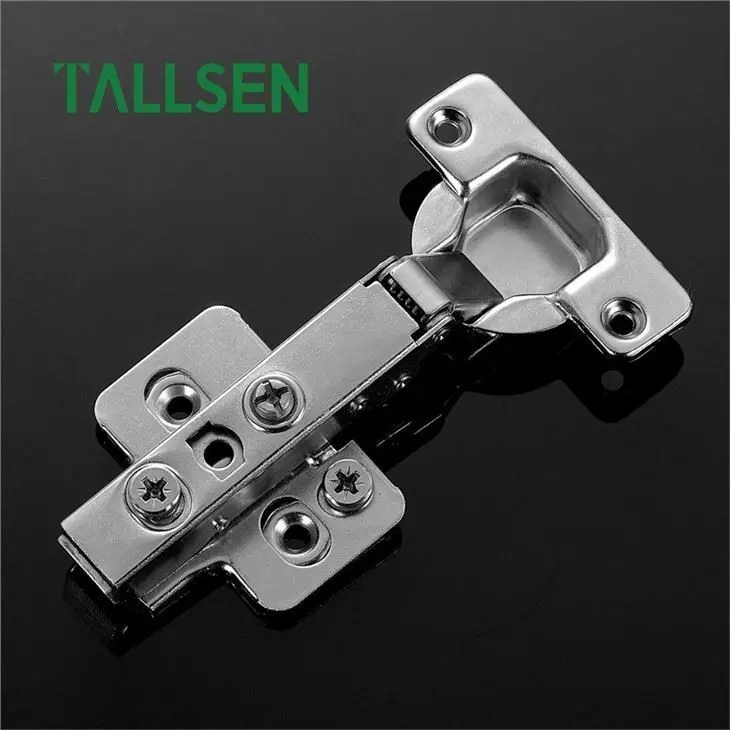

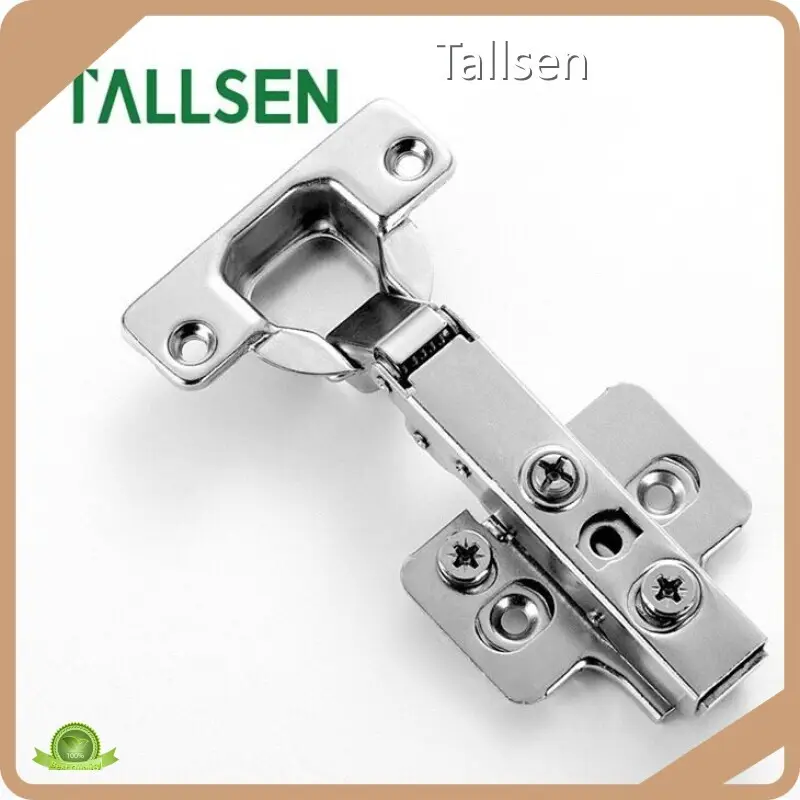

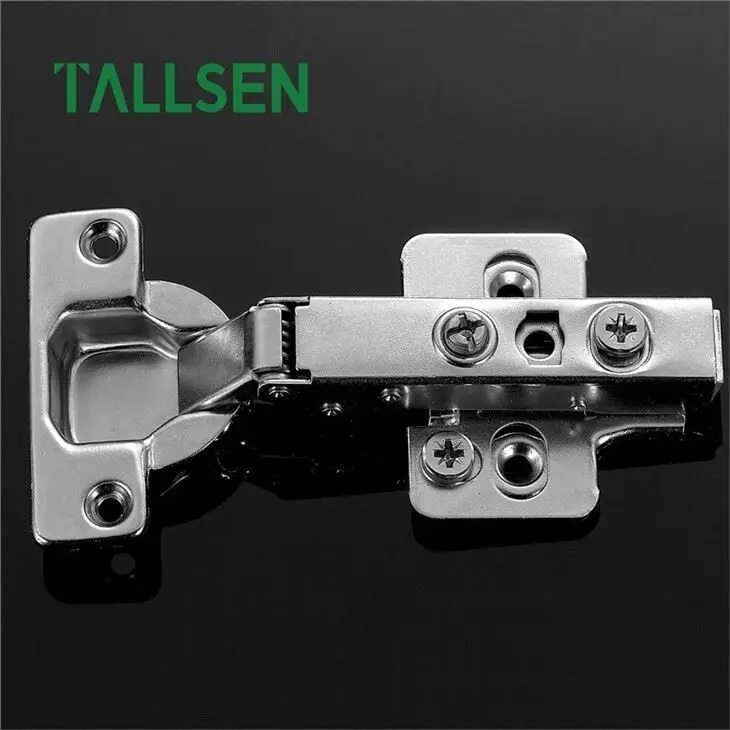

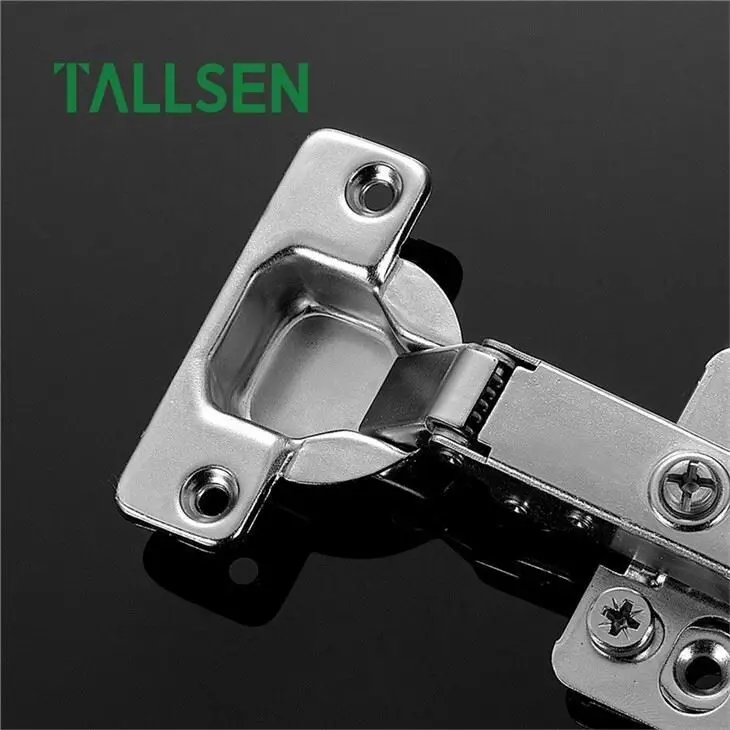

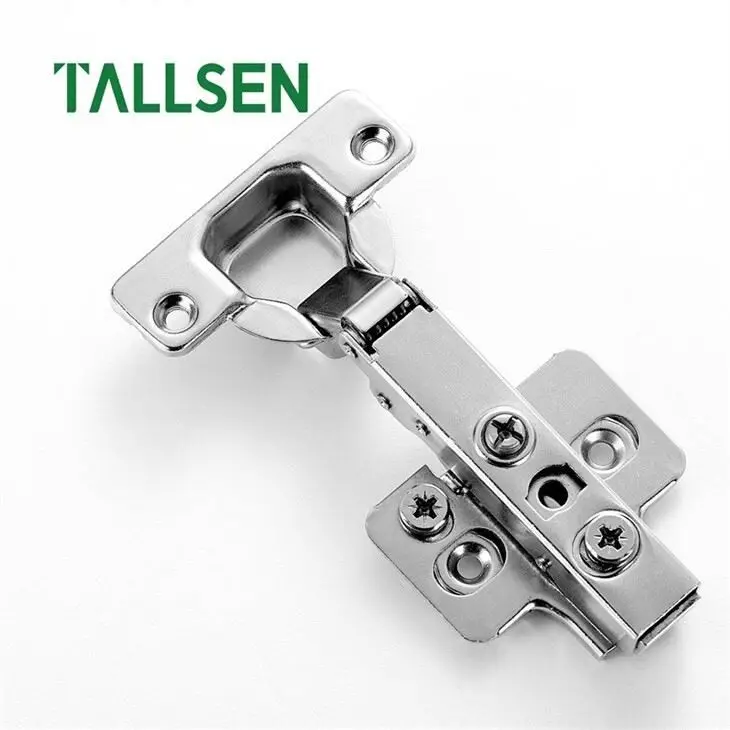

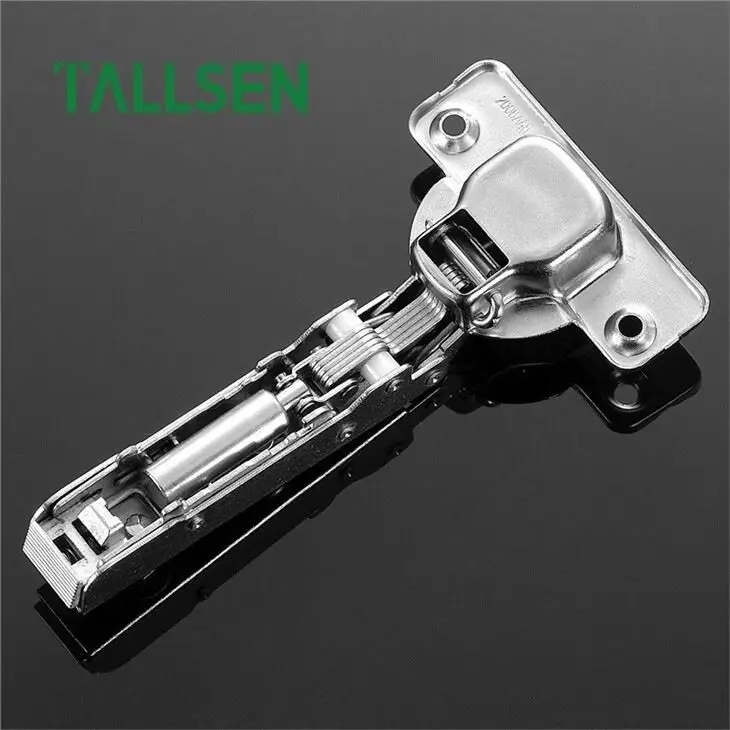

Click-on soft-close cold rolled steel hinges
Clip-on 3d adjustalbe hydraulicdampimg hinge(one-way)
Name | TH3309 Click-on soft-close cold rolled steel hinges |
Type | Clip-on One Way |
Opening angle | 100° |
Diameter of hinge cup | 35mm |
Material | Stainless Steel, Nickel Plated |
Hydraulic Soft closing | yes |
The depth adjustment | -2mm/ +2mm |
Base adjustment (up/down) | -2mm/ +2mm |
Door coverage adjustment | 0mm/ +6mm |
Suitable Board Thickness | 15-20mm |
Depth of Hinge Cup | 11.3mm |
Hinge Cup Screw Hole Distance | 48mm |
Door Drilling Size | 3-7mm |
Height of mounting plate | H=0 |
Package | 2pc/polybag 200 pcs/carton |
PRODUCT DETAILS
TH3309 Click-on soft-close cold rolled steel hinges | |

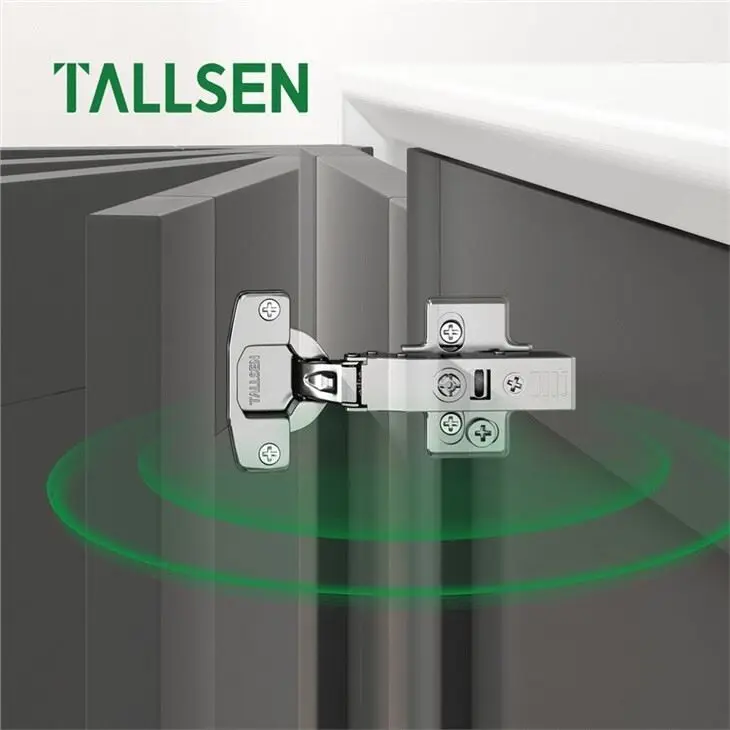

Tired of kitchen cabinet doors that bang noisily? Make your life quieter and more agreeable with these click-on, soft-close hinges that glide gently shut. | |
Just push the door and the mechanism swings automatically into action, so the door comes slowly to a close. Use this item when you need a 110° opening angle for your cabinetry. |
INSTALLATION DIAGRAM
Tallsen Hardware has continuously integrated industry resources and perfected product supply chain, covering drawer slide, undermount slide, metal drawer box, hinge, gas spring, handles and other product solutions, to form a rich category, high quality, cost-effective, and wide channel hardware supply platform for meeting the needs of different markets at home and abroad to open the international market.
FAQ:
The hinge is made from steel so it's both tough and durable. Simply screw the mounting back plates onto your door, attach the device to the cupboard and click the hinge arm into place to install it.
• Opening angle of 110°
• Integrated soft-closing mechanism makes banging doors a thing of the past
• Screw-on mounting backplate for a secure fit
