Tallsen Kitchen Cabinet Hinges, | TALLSEN
Product details of the kitchen cabinet hinges
Product Information
The design of Tallsen kitchen cabinet hinges combines aesthetics and functionality. The product is highly praised for its strong usability and consistent performance. Tallsen Hardware can tailor our kitchen cabinet hinges based on customer's requirements.
3 Way Adjustability Clip on Plate & Matching Srew Hinge
Clip-on 3d adjustalbe hydraulicdampimg hinge(one-way)

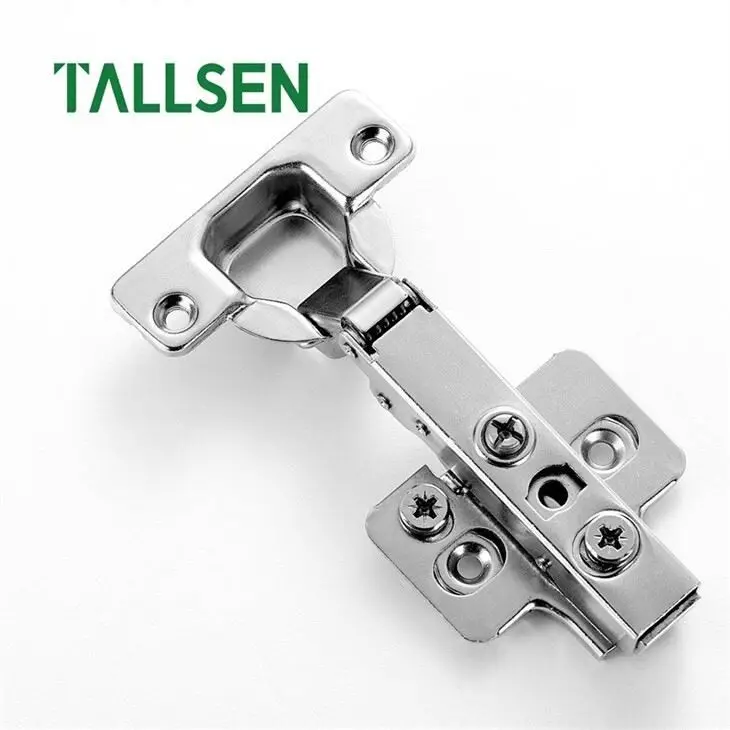

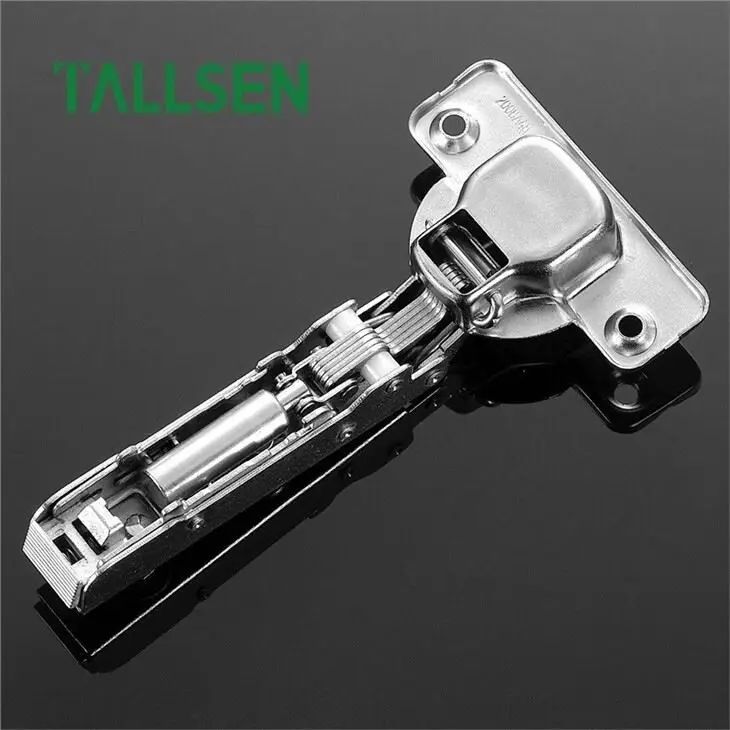

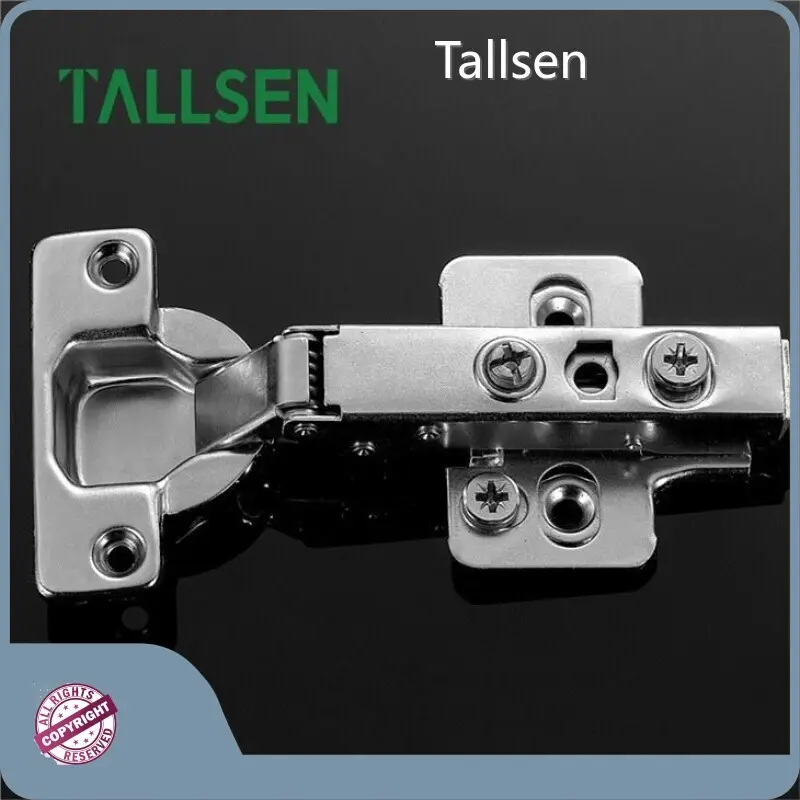

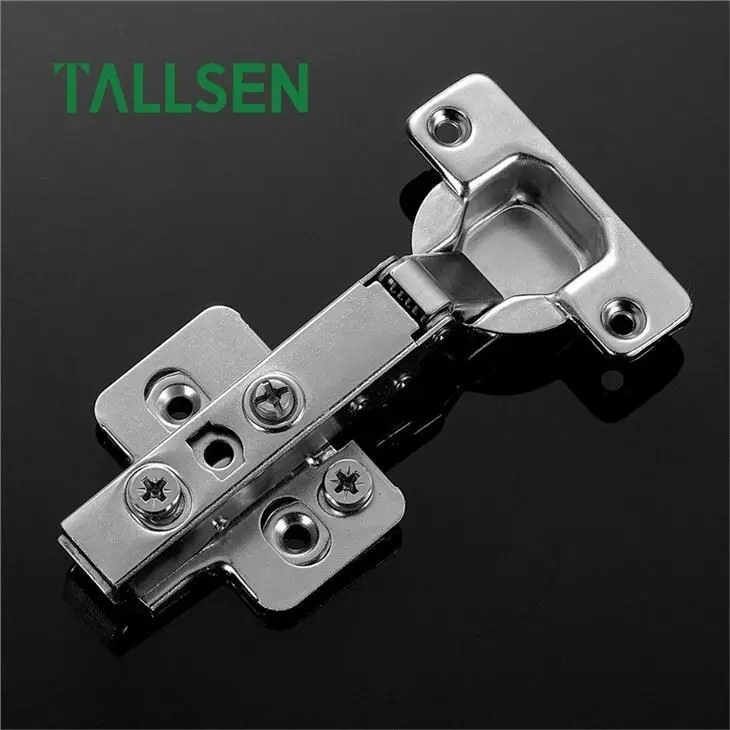

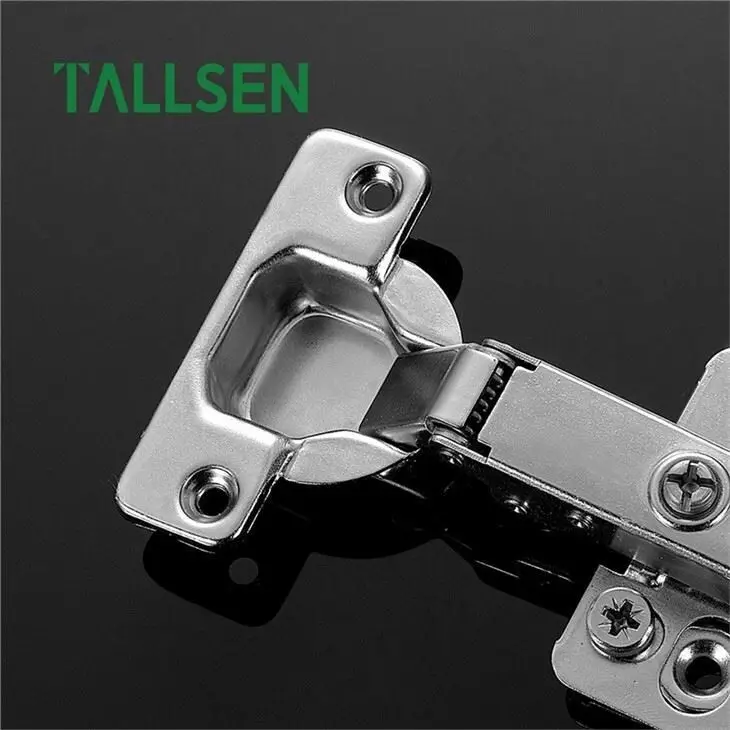

Name | TH3309 3 Way Adjustability Clip on Plate & Matching Srew Hinge |
Type | Clip-on One Way |
Opening angle | 100° |
| Diameter of hinge cup | 35mm |
Material | Stainless Steel, Nickel Plated |
Hydraulic Soft closing | yes |
The depth adjustment | -2mm/ +2mm |
Base adjustment (up/down) | -2mm/ +2mm |
| Door coverage adjustment | 0mm/ +6mm |
| Suitable Board Thickness | 15-20mm |
| Depth of Hinge Cup | 11.3mm |
| Hinge Cup Screw Hole Distance | 48mm |
| Door Drilling Size | 3-7mm |
| Height of mounting plate | H=0 |
| Package | 2pc/polybag 200 pcs/carton |
PRODUCT DETAILS
TH3309 3 Way Adjustability Clip on Plate & Matching Srew Hinge | |
It is the most common frameless cupboard cabinet overlay size. | |
They are an intelligent choice with Clip-on Plates, matching screws, and 3-D adjustability to ensure a perfect fit for your kitchen, bathroom, and other spaces in your home and office. |
INSTALLATION DIAGRAM
In terms of product quality, in order to fully guarantee the reliable performance and service lifespan, Tallsen Hardware takes the German manufacturing standard as the guideline, strictly in accordance with European Standard EN1935 . The hinge loads 7.5kg over 50,000 cycle durability test; The drawer slide, undermount slide or metal drawer box loads 35kg over 50,000 cycles durability test; The high-strength anti-corrosion test, the hinge 48-hour 9-level neutral salt spray test and integrated component hardness test are all in line with international standards.It is through such comprehensive test of quality, function and lifespan that Tallsen supply safe and superior products to our customers.
FAQ:
Fully Functioning Cabinets for Every Room
Frameless Cabinet Full Overlay Hinges
Tallsen Frameless Soft-close Cabinet Hinges provide long-lasting durability, excellent damper, and the reinforced durability to outlast even the roughest kitchens or bathrooms. Because every cabinet counts!
Company Advantage
• Tallsen's enjoy a good reputation at home and abroad. They are not only widely sold in the domestic market, but also exported to Europe, America, Southeast Asia, Asia, and other countries and regions.
• Our company was founded in After the continuous development for years, we have broken through various difficulties, accumulated rich experience and achieved excellent results. Now, we take a high position in the industry.
• Our company's geographic location is superior, and the traffic is convenient.
Tallsen's have multiple types and reliable quality. Customers from all walks of life are welcome to call us for consultation!
