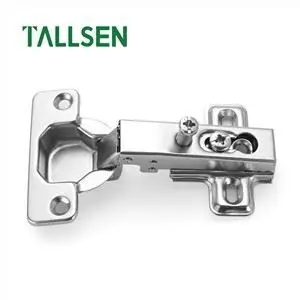

110 Degree Slide on Soft Closing Hinge American Type 1
110 Degree Slide on Soft Closing Hinge American Type 1

110 Degree Slide on Soft Closing Hinge American Type

Finish:nickel plated
Net Weight:68g
The Coverage Adjustment:+5mm
Inquiry

According to the market demand, we constantly develop new Adjusting Door Panel Cabinet Door Hinges, Glass Handles For Kitchen Cabinets, Damper Self Closing Cabinet Hinges and new styles. Our company will pay more attention to developing new markets and greatly enrich the product line. We have the ability of product development and customization, modern standard production line to ensure quality and delivery management. With a passion for reform, we set out to create a management system that is both scientific and in line with our company's own characteristics.

TH1019 American Short Arm Cabinet Hinge


110 Degree Slide on Soft Closing Hinge American Type 2


FIXED REINFORCE-TYPE HINGE

110 Degree Slide on Soft Closing Hinge American Type 3

110 Degree Slide on Soft Closing Hinge American Type 4

Product Name

TH1019 Soft Close Fixed Cabinet Hinges

Opening Angle

105degree

Hinge Cup Thicknes

11.3mm

Hinge Cup Diameter

35mm

Suitable Board Thickness

14-20mm

Material

cold rolled steel

Finish

nickel plated

Net Weight

68g

The Coverage Adjustment

0/+5mm

The Depth Adjustment

-2/+3.5mm

The Base Adjustment

-2/+2mm

Height of mounting plateH=0
Door Drilling Size3-7mm
Package2 pcs/poly bag, 200 pcs/carton


PRODUCT DETAILS

110 Degree Slide on Soft Closing Hinge American Type 5

110 Degree Slide on Soft Closing Hinge American Type 6

The hinge side of a cabinet poses a risk for young children' s fingers. The painful squeezing of a finger can not only be painful but also cause long-term damage.110 Degree Slide on Soft Closing Hinge American Type 7
110 Degree Slide on Soft Closing Hinge American Type 8When designing TH1019 American Short Arm Cabinet Hinge to new child daycare centers or nurseries, it is important to incorporate finger protection functions for cabinet doors directly into the building plans.

In addition to the functional benefits, the uniform and clean appearance of the cabinet with integrated finger protection offers visual appeal.

110 Degree Slide on Soft Closing Hinge American Type 9
110 Degree Slide on Soft Closing Hinge American Type 10110 Degree Slide on Soft Closing Hinge American Type 11110 Degree Slide on Soft Closing Hinge American Type 12
Full overlayHalf overlayEmbed


110 Degree Slide on Soft Closing Hinge American Type 13


INSTALLATION DIAGRAM


110 Degree Slide on Soft Closing Hinge American Type 14

110 Degree Slide on Soft Closing Hinge American Type 15

Tallsen Hardware has been a well-known Chinese manufacturer of door hinges and hinge systems for heavy-duty, residential and commercial doors. Committed to high quality standards, the company is always driving innovation and striving for long-lasting customer relationships.

110 Degree Slide on Soft Closing Hinge American Type 16

110 Degree Slide on Soft Closing Hinge American Type 17

110 Degree Slide on Soft Closing Hinge American Type 18

110 Degree Slide on Soft Closing Hinge American Type 19

110 Degree Slide on Soft Closing Hinge American Type 20

110 Degree Slide on Soft Closing Hinge American Type 21


FAQ:


Q1: How many Hinge kinds do you promote?

A: We have 16 different kinds of hinge for now.
Q2: What is the distances of your hinge cup screw holes?

A:There are 45,48 and 52 millimeter.
Q3: Can you make the hinge look more pretty?
A: We have beautiful shell to cover the hinge head and arm.
Q4: Is the hinge solid and durable?

A: This is the reinforced hinge.
Q5: May I do agent of your product in my country?

A: Welcome to be our agent but we have to evaluate.


These endeavours include the availability of customized designs with speed and dispatch for 110 Degree Slide on Soft Closing Hinge American Type. We carry out technological innovation and transformation on the basis of the original technology. We adopt the latest production management system to ensure the delivery of high-quality products in the shortest possible time.
