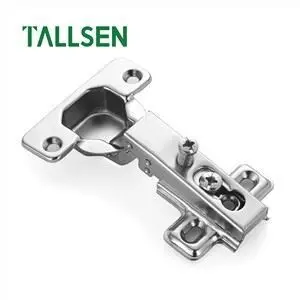

35mm Soft Close Fixed Hydraulic Cabinet Hinge Furniture Hardware 1
35mm Soft Close Fixed Hydraulic Cabinet Hinge Furniture Hardware 1

35mm Soft Close Fixed Hydraulic Cabinet Hinge Furniture Hardware

Net Weight:68g
The Coverage Adjustment:+5mm
The Depth Adjustment:-2/+3.5mm
The Base Adjustment:-2/+2mm
Inquiry

All of our Furniture Dessing Table Gas Spring, Black Matte Color Door Handle, Adjustable Stainless Steel Furniture Legs And Feet are independently researched and acquired by our unique technology to make sure that they can be upgraded and updated constantly. If you have a specific requirement for this product, please contact us, we would be happy to discuss your requirements in details. Our company regards quality as the lifeblood of the company's sustainable operation, production quality as the foundation of the company's business, and service quality as the source of the company's sustainable operation.

TH5619 Soft Close Fixed Cabinet Hinges


35mm Soft Close Fixed Hydraulic Cabinet Hinge Furniture Hardware 2


FIXED REINFORCE-TYPE HINGE

35mm Soft Close Fixed Hydraulic Cabinet Hinge Furniture Hardware 3

35mm Soft Close Fixed Hydraulic Cabinet Hinge Furniture Hardware 4

Product Name

TH5619 Soft Close Fixed Cabinet Hinges

Opening Angle

100degree

Hinge Cup Thicknes

11.3mm

Hinge Cup Diameter

35mm

Suitable Board Thickness

14-20mm

Material

cold rolled steel

Finish

nickel plated

Net Weight

80g

Package2 pcs/poly bag, 200 pcs/carton

The Coverage Adjustment

+5mm

The Depth Adjustment

-2/+3.5mm

The Base Adjustment

-2/+2mm


PRODUCT DETAILS

35mm Soft Close Fixed Hydraulic Cabinet Hinge Furniture Hardware 5

35mm Soft Close Fixed Hydraulic Cabinet Hinge Furniture Hardware 6

TH5619 Soft Close Fixed Cabinet Hinges can be full or half wrap and are attached with screws to the inside edge of a face frame opening.35mm Soft Close Fixed Hydraulic Cabinet Hinge Furniture Hardware 7
35mm Soft Close Fixed Hydraulic Cabinet Hinge Furniture Hardware 8Wrap hinges are available in residential, furniture and heavy duty institutional versions. And for this one, it is Insperable Type Hinges, can reach the adjustable up-down. front-back, left and right.
As to the size, we can see from the surface, 1/2'' and 1-1/4'', they are the ordinary size. And we can make it 1-3/16'' and 1-3/8''and 1-1/2'' at the same time.35mm Soft Close Fixed Hydraulic Cabinet Hinge Furniture Hardware 9
35mm Soft Close Fixed Hydraulic Cabinet Hinge Furniture Hardware 1035mm Soft Close Fixed Hydraulic Cabinet Hinge Furniture Hardware 1135mm Soft Close Fixed Hydraulic Cabinet Hinge Furniture Hardware 12
Full overlayHalf overlayEmbed

35mm Soft Close Fixed Hydraulic Cabinet Hinge Furniture Hardware 13



INSTALLATION DIAGRAM


35mm Soft Close Fixed Hydraulic Cabinet Hinge Furniture Hardware 14

35mm Soft Close Fixed Hydraulic Cabinet Hinge Furniture Hardware 15

COMPANY PROFILE

Tallsen Hardware holds a well-established position worldwide by virtue of its natural talent for innovation, careful attention to quality, efficiency of customer service, and reliability earned during more than 20 years of experience. Tallsen is one of the renowned brands among the small, medium-sized and large companies in the furniture industry.

35mm Soft Close Fixed Hydraulic Cabinet Hinge Furniture Hardware 16


35mm Soft Close Fixed Hydraulic Cabinet Hinge Furniture Hardware 17

35mm Soft Close Fixed Hydraulic Cabinet Hinge Furniture Hardware 18

35mm Soft Close Fixed Hydraulic Cabinet Hinge Furniture Hardware 19

35mm Soft Close Fixed Hydraulic Cabinet Hinge Furniture Hardware 20

35mm Soft Close Fixed Hydraulic Cabinet Hinge Furniture Hardware 21


FAQ:

Q1:Do you offer cabinet door?

A: We only offer the hinge.

Q2:What is MDF?

A: It is Medium Density Fiberboard

Q3:Will I receive status updates and tracking information?

A:Yes, you will receive email updates regarding your order status

Q4: How do I place an order?

A: Reserve the words and our consultant will follow.

Q5:How many taxes do I need to pay?

A: You could check your local custom data.
