Aluminium Zinc Alloy Body Concealed Cabinet Hinge for Door CNC Machine 1
Aluminium Zinc Alloy Body Concealed Cabinet Hinge for Door CNC Machine 1

Aluminium Zinc Alloy Body Concealed Cabinet Hinge for Door CNC Machine

Material:cold rolled steels
Finish:nickel plated
Net Weight:107g
Inquiry

All staff of our company will continue to work tirelessly, engaged in manufacturing Glass Door Cold Rolled Steel Cabinet Hinges, Mute And Comfortable Soft Close Door Hinges, Simple Style 304 Material Exterior Door Hinges and improve innovation capabilities, striving to be a industry leader enterprise and create world-class products. Over the years, we have taken many steps to offer better service and superior quality to all of our customers. Our goal is to provide you with a larger selection of products in our ever-growing industry. Our company takes 'quality for survival, reputation for development' as the business purpose, and constantly expand domestic and foreign markets. Our company breaks the traditional sales model and fully guarantees customers' product quality and cost-effectiveness. The company actively promotes changes, deploys an intelligent manufacturing system and an intelligent service system with Internet thinking, and creates a world-leading new system of research and development, production, manufacturing and service.

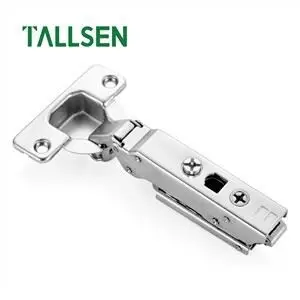

TH9819 I Shaped Cabinet Door Hinges


Aluminium Zinc Alloy Body Concealed Cabinet Hinge for Door CNC Machine 2


LARGE ANGLE TWO WAY BUFFER HINGE

Aluminium Zinc Alloy Body Concealed Cabinet Hinge for Door CNC Machine 3

Aluminium Zinc Alloy Body Concealed Cabinet Hinge for Door CNC Machine 4

Product Name

TH9819 I Shaped Cabinet Door Hinges

Opening Angle

120 degree

Hinge Cup Depth

11.5mm

Hinge Cup Diameter

35mm

Door Thickness

14-21mm

Material

cold rolled steels

Finish

nickel plated

Net Weight

107g

Application

Cabinet,Kitchen,Wardrobe

The Coverage Adjustment

-2.5/+2.5mm

The Depth Adjustment

-2/+2mm

Soft Closing

Yes

Height of mounting plateH=0
Door Drilling Size3-7mm
Package100 pcs/carton


PRODUCT DETAILS

Aluminium Zinc Alloy Body Concealed Cabinet Hinge for Door CNC Machine 5

Aluminium Zinc Alloy Body Concealed Cabinet Hinge for Door CNC Machine 6

TH9819 I Shaped Cabinet Door Hinges are created as a very modern and cool I letter shape.Aluminium Zinc Alloy Body Concealed Cabinet Hinge for Door CNC Machine 7
Aluminium Zinc Alloy Body Concealed Cabinet Hinge for Door CNC Machine 8

This hinge comes supplied with an adjustable clip-on the mounting plate, which allows the door to be fully adjusted and then quickly removed by simply pushing a small button at the very tip of the hinge. In order to install, you first clamp the hinge onto the mounting plate.

Then press down the hinge arm to lock the plate. On the other hand, the door can be quickly removed by pushing the button.Aluminium Zinc Alloy Body Concealed Cabinet Hinge for Door CNC Machine 9

Aluminium Zinc Alloy Body Concealed Cabinet Hinge for Door CNC Machine 10

Aluminium Zinc Alloy Body Concealed Cabinet Hinge for Door CNC Machine 11Aluminium Zinc Alloy Body Concealed Cabinet Hinge for Door CNC Machine 12
Full overlayHalf overlayEmbed

Aluminium Zinc Alloy Body Concealed Cabinet Hinge for Door CNC Machine 13

Aluminium Zinc Alloy Body Concealed Cabinet Hinge for Door CNC Machine 14


INSTALLATION DIAGRAM

Aluminium Zinc Alloy Body Concealed Cabinet Hinge for Door CNC Machine 15

Aluminium Zinc Alloy Body Concealed Cabinet Hinge for Door CNC Machine 16

Tallsen Hardware is a customer-focused company dedicated to providing the finest quality decorative hardware to the kitchen and living room at competitive prices.With a solid commitment to innovation, quality and superior customer service, Tallsen Hardware has enjoyed sustained growth and provides its customers across North America , West Europe And Southeast Asia with a wide variety of superior quality decorative hinges, knobs, handles and pulls and others with today’s designs and the tastes of the consumer in mind.

Aluminium Zinc Alloy Body Concealed Cabinet Hinge for Door CNC Machine 17


Aluminium Zinc Alloy Body Concealed Cabinet Hinge for Door CNC Machine 18

Aluminium Zinc Alloy Body Concealed Cabinet Hinge for Door CNC Machine 19

Aluminium Zinc Alloy Body Concealed Cabinet Hinge for Door CNC Machine 20

Aluminium Zinc Alloy Body Concealed Cabinet Hinge for Door CNC Machine 21

Aluminium Zinc Alloy Body Concealed Cabinet Hinge for Door CNC Machine 22


FAQ:

Q1: What is the shape difference of your hinge?

A: It is just like an English letter T or I.
Q2: Why the hinge base is designed without the frame?
A: It looks more cool and sets more easily.
Q3:What is max kilogram can the hinge support?
A: Two hinge can support 35kg front door.
Q4:What thickness of cabinet board does the hinge fit?
A: 14 to 21 mm cabinet board
Q5: What is drilling size of the screw?
A: You need 3-7mm size drill.


We are committed to providing sophisticated Aluminium Zinc Alloy Body Concealed Cabinet Hinge for Door CNC Machine and high-quality modern services to international and domestic customers. We not only supply good products but also long-term service and friendship.The most of our products are exported to the overseas markets for good quality, competitive price and perfect service. We actively sort out the enterprise development strategy, establish a brand management mechanism, strengthen brand internal and external promotion and market development, and timely monitor and maintain our brand value.
