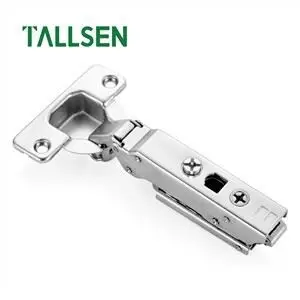

TH9819 I Shaped Cabinet Door Hinges
LARGE ANGLE TWO WAY BUFFER HINGE
Product Name | TH9819 I Shaped Cabinet Door Hinges |
Opening Angle | 120 degree |
Hinge Cup Depth | 11.5mm |
Hinge Cup Diameter | 35mm |
Door Thickness | 14-21mm |
Material | cold rolled steels |
Finish | nickel plated |
Net Weight | 107g |
Application | Cabinet,Kitchen,Wardrobe |
The Coverage Adjustment | -2.5/+2.5mm |
The Depth Adjustment | -2/+2mm |
Soft Closing | Yes |
Height of mounting plate | H=0 |
Door Drilling Size | 3-7mm |
Package | 100 pcs/carton |
PRODUCT DETAILS
TH9819 I Shaped Cabinet Door Hinges are created as a very modern and cool I letter shape. | |
This hinge comes supplied with an adjustable clip-on the mounting plate, which allows the door to be fully adjusted and then quickly removed by simply pushing a small button at the very tip of the hinge. In order to install, you first clamp the hinge onto the mounting plate. | |
Then press down the hinge arm to lock the plate. On the other hand, the door can be quickly removed by pushing the button. |
Full overlay | Half overlay | Embed |
INSTALLATION DIAGRAM
Tallsen Hardware is a customer-focused company dedicated to providing the finest quality decorative hardware to the kitchen and living room at competitive prices.With a solid commitment to innovation, quality and superior customer service, Tallsen Hardware has enjoyed sustained growth and provides its customers across North America , West Europe And Southeast Asia with a wide variety of superior quality decorative hinges, knobs, handles and pulls and others with today’s designs and the tastes of the consumer in mind.
FAQ:
Q1: What is the shape difference of your hinge?
A: It is just like an English letter T or I.
Q2: Why the hinge base is designed without the frame?
A: It looks more cool and sets more easily.
Q3:What is max kilogram can the hinge support?
A: Two hinge can support 35kg front door.
Q4:What thickness of cabinet board does the hinge fit?
A: 14 to 21 mm cabinet board
Q5: What is drilling size of the screw?
A: You need 3-7mm size drill.
