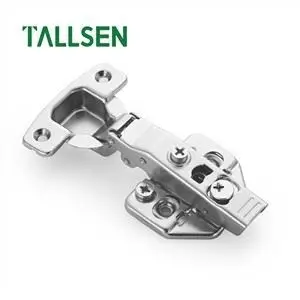

K12 stainless Steel inseparable Mute Hydraulic -damping hinge 1
K12 stainless Steel inseparable Mute Hydraulic -damping hinge 1

K12 stainless Steel inseparable Mute Hydraulic -damping hinge

Net Weight:117g
Application:Cabinet,Kitchen,Wardrobe
The Coverage Adjustment:+5mm
Inquiry

We have a young, high-quality, pioneering scientific research team that combines modern information technology to research and develop high-quality Push Open System, Damping Concealed Cabinet Hinges, Stainless Steel Replacing Cabinet Door Hinges. Our company is committed to continuous innovation and development of new products, new technologies and new processes. We believe that with high quality products, reasonable price, thoughtful and fast service and good communication and cooperation ability, we will create a better cooperative relationship with you. The company has its own R&D team, adopts advanced production equipment, and implements a scientific management system.

TH9959 Two Way Hydraulic Mute Cabinet Hinges


K12 stainless Steel inseparable Mute Hydraulic -damping hinge 2


CLIP-ON 3D ADJUSTABLE HYDRAULIC DAMPING HINGE(TWO WAY)

K12 stainless Steel inseparable Mute Hydraulic -damping hinge 3

K12 stainless Steel inseparable Mute Hydraulic -damping hinge 4

Product Name

TH9959 Two Way Hydraulic Mute Cabinet Hinges

Opening Angle

110 degree

Hinge Cup Depth

12mm

Hinge Cup Diameter

35mm

Door Thickness

14-20mm

Material

cold rolled steels

Finish

nickel plated

Net Weight

117g

Application

Cabinet,Kitchen,Wardrobe

The Coverage Adjustment

+5mm

The Depth Adjustment

-2/+2mm

The Base Adjustment

-2/+2mm

Door Drilling Size3-7mm
Height of mounting plateH=0
Package100 pcs/carton

Soft Closing

Yes


PRODUCT DETAILS

K12 stainless Steel inseparable Mute Hydraulic -damping hinge 5

K12 stainless Steel inseparable Mute Hydraulic -damping hinge 6

TH9959 Two Way Hydraulic Mute Cabinet Hinges are hot-selling in Tallsen. It is concealed hinges for easy installation. A 110-degree wide opening angle is for easy storage in the cabinet.K12 stainless Steel inseparable Mute Hydraulic -damping hinge 7
K12 stainless Steel inseparable Mute Hydraulic -damping hinge 8It is nickel plated for corrosion resistance.It is suitable for cabinet doors from 14mm to 20mm thickness. The shutter cavity is Ø35mm and 12mm deep.
Hinge should be fitted using screws and should not be hammered.Please do not apply polish, paint or varnish. Avoid pushing beyond 100° to prevent damage to hinge.K12 stainless Steel inseparable Mute Hydraulic -damping hinge 9




K12 stainless Steel inseparable Mute Hydraulic -damping hinge 10


INSTALLATION DIAGRAM

K12 stainless Steel inseparable Mute Hydraulic -damping hinge 11

K12 stainless Steel inseparable Mute Hydraulic -damping hinge 12

Tallsen Hardware design, manufacture and supply functional hardware for exclusive residential, hospitality and commercial construction projects across the globe. We service importers, distributors, supermarkets, engineer projects and retailor, etc. For us, it’s not just about how the products look, but it’s about how they work and feel. As they are used every day they need to be comfortable and deliver a quality that can be both seen and felt. Our ethos isn’t about the bottom line, it’s about making products that we love and that our customers want to buy.


K12 stainless Steel inseparable Mute Hydraulic -damping hinge 13K12 stainless Steel inseparable Mute Hydraulic -damping hinge 14

K12 stainless Steel inseparable Mute Hydraulic -damping hinge 15

K12 stainless Steel inseparable Mute Hydraulic -damping hinge 16

K12 stainless Steel inseparable Mute Hydraulic -damping hinge 17

K12 stainless Steel inseparable Mute Hydraulic -damping hinge 18


FAQ:

Q1: What is the surface of the hinge?

A: It is Nickel coated.
Q2: Can the hinge withstand the salt spray?

A: .Yes, it can

Q3: Are your factory got approval of ISO?

A: Yes we have been approved by ISO.

Q4: How many language can you support on your package

A: English, Spanish, Chinese, Italian, etc

Q5: What kind of buyers have you co-worked with?

A: Importer, Reseller, Distributor and Supermarket.


We are a dynamic enterprise, dedicated to providing customers with high-quality K12 stainless Steel inseparable Mute Hydraulic -damping hinge. Advocating professionalism, producing first-class products and providing first-class service is the guarantee for our company to develop. Moreover, the company stays unique among its competitors due to its superior standard of quality in production, and its efficiency and flexibility in business support.
