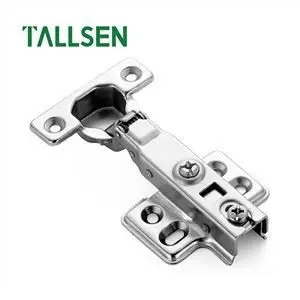

Th3318 Imbedded Hidden Cabinet Hinges
INSEPARABLE DAMPING HINGE 26MM CUP
Product Name | TH3318 Imbedded Hidden Cabinet Hinges |
Opening Angle | 100 degree |
Hinge Cup Thicknes | 11.3mm |
Hinge Cup Diameter | 26mm |
Suitable Board Thickness | 14-20mm |
Material | cold rolled steel |
Finish | nickel plated |
Net Weight | 80g |
Application | cabinet,cupboard,wardrobe, closet |
The Coverage Adjustment | 0/+5mm |
The Depth Adjustment | -2/+3mm |
Base adjustment | -2/+2mm |
Package | 200 pcs/carton. |
Height of mounting plate | H=0 |
Door Drilling Size | 3-7mm |
PRODUCT DETAILS
You should check the diameter of the hole in the door that your current hinge sits in, these are usually 26mm, 35mm or 40mm. if you install a new hinge you'll need one of our hinge hole cutters. | |
If you install a new hinge you should drill a correctly sized hole on the door using one of our hole cutter attachments, you'll need to measure 21.5mm inwards from the edge of the door | |
This leaves the hole 4mm from the edge of the door then the hole will need to be 12mm deep for the hinge cup to sit flush. TH2619 Imbedded Hidden Cabinet Hinges a re the same theory. |
Full overlay | Half overlay | Embed |
INSTALLATION DIAGRAM
Tallsen Hardware is dedicated to supplying you with the best quality cabinet hardware and accessories on the market at a price that won't leave your wallet empty. Check out this hinge buying guide for expert advice on the most popular cabinet and furniture hinges, features, and FAQs. For Cabinet Door Hardware’s complete collection, find all of our hinges online
FAQ:
Q1:What does Tallsen brand mean?
A: It means green environment and young.
Q2: How can you help my business?
A: We have professional market consultant
Q3: Do you have short arm frame hinge.
A: We also support USA style hinge.
Q4: Can you give me suggestion of buying?
A: Yes we have purchasing advisor for you.
Q5: Can I use credit card to buy the products?
A: Yes you should use credit card
