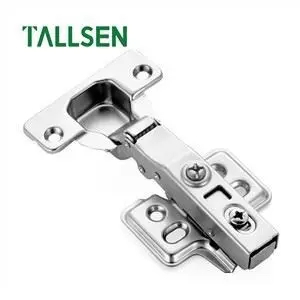

TH3329 Damping Concealed Cabinet Hinges
CLIP-ON HYDRAULIC DAMPING HINGE
Product Name |
TH3329 Damping Concealed Cabinet Hinges |
Opening Angle |
100 degree |
Depth of Hinge Cup |
11.3 |
Diameter of Hinge Cup |
35mm |
Door Thickness |
14-20mm |
Material |
cold rolled steels |
Finish |
nickel plated |
Net Weight |
80g |
Package | 200 pcs/carton |
Height of Mounting Plate | H=0 |
Application |
Cabinet,Kitchen,Wardrobe |
The Cover Adjustment | 0/+5mm |
The Depth Adjustment |
-2/+3mm |
The Base Adjustment |
-2/+2mm |
PRODUCT DETAILS
Very similar to the full overlay hinge, but it allows for a door to be mounted either side of a central carcass panel. | |
5000 times cycle test,super load-bearing | |
This specific type of hinge is often used in bedroom wardrobes as well as in kitchens. |
Full overlay |
Half overlay | Embed |
INSTALLATION DIAGRAM
COMPANY PROFILE
Tallsen Hardware design, manufacture and supply functional hardware for exclusive residential, hospitality and commercial construction projects across the globe. We service importers, distributors, supermarket, engineer project and retailor etc. For us, it’s not just about how the products look, but it’s about how they work and feel. As they are used every day they need to be comfortable and deliver a quality that can be both seen and felt.Our ethos isn’t about the bottom line, it’s about making products that we love and that our customers want to buy.
FAQ
Q1:Where can I buy your products?
A: All of our products are either stocked or available for special ordr.
Q2:How do I clean my decorative hardware?
A: For best results, use only a soft cloth, water, and a mild, non-alkaline soap.
Q3:How do I choose the right cabinet hinge?
That depends on the overlay of your door.
Q4:What is default height of the base?
A:The base is set H= 0.
Q5:How many hinges do I need if my cabinet door is over 1000mm?
A: You need at least 3 pieces of hinges
